RCCN PGA Nylon Cable Gland
 |

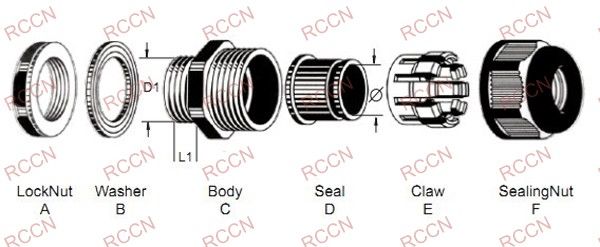

| Thread:DIN STANDARD Material:A.C.E.F made of Rohs approved NYLON66,B.D made of NBR Certificate:UL/CUL:E348185,CE, SGS,REACH,EX Fireproof:UL94V-2。 Operate temperature:-50°C to 150°C。 Protect class:IP68。 Color:light gray(RAL7035),black(RAL9005)。 |
| Item No. | Thread |
CableRange ￠ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Spanner size A&F |
|
| White | Black | ||||||
| PG7A-05B | PG7A-05G | PG7 | 3-5.5 | 12.5 | 12.5-12.8 | 8 | 17/19 |
| PG7A-08B | PG7A-08G | PG7 | 4-8 | 12.5 | 12.5-12.8 | 8 | 17/19 |
| PG9A-05B | PG9A-05G | PG9 | 3-5.5 | 15.2 | 15.2-15.8 | 8.2 | 22/19 |
| PG9A-08B | PG9A-08G | PG9 | 4-8 | 15.2 | 15.2-15.8 | 8.2 | 22/19 |
| PG11A-07B | PG11A-07G | PG11 | 4-7 | 18.6 | 18.6-18.9 | 10 | 24/22 |
| PG11A-10B | PG11A-10G | PG11 | 5-10 | 18.6 | 18.6-18.9 | 10 | 24/22 |
| PG13.5A-08B | PG13.5A-08G | PG13.5 | 4-8 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG13.5A-12B | PG13.5A-12G | PG13.5 | 6-12.5 | 20.4 | 20.4-20.7 | 10 | 27/24 |
| PG16A-11B | PG16A-11G | PG16 | 6-11 | 22.5 | 22.3-22.8 | 10.8 | 30/27 |
| PG16A-14B | PG16A-14G | PG16 | 8.5-14 | 22.5 | 22.3-22.8 | 10.8 | 30/27 |
| PG21A-16B | PG21A-16G | PG21 | 10-16 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG21A-18B | PG21A-18G | PG21 | 12.5-18 | 28.3 | 28.3-28.7 | 12 | 36/33 |
| PG29A-22B | PG29A-22G | PG29 | 15-22 | 37.0 | 37.0-37.4 | 12 | 46/41 |
| PG29A-25B | PG29A-25G | PG29 | 17-25 | 37.0 | 37.0-37.4 | 12 | 46/41 |
| PG36A-25B | PG36A-25G | PG36 | 20-26 | 47.0 | 47.0-47.4 | 14 | 51/52 |
| PG36A-30B | PG36A-30G | PG36 | 24-31 | 47.0 | 47.0-47.4 | 14 | 51/52 |
| PG42A-32B | PG42A-32G | PG42 | 25-33 | 54.0 | 54.0-54.4 | 15 | 64/62 |
| PG42A-40B | PG42A-40G | PG42 | 30-41 | 54.0 | 54.0-54.4 | 15 | 64/62 |
