RCCN MS Stainless Steel Cable Gland

RCCN MS Stainless Steel Cable Gland


RCCN MS Stainless Steel Cable Gland


RCCN MS Stainless Steel Cable Gland
Thread:Metric

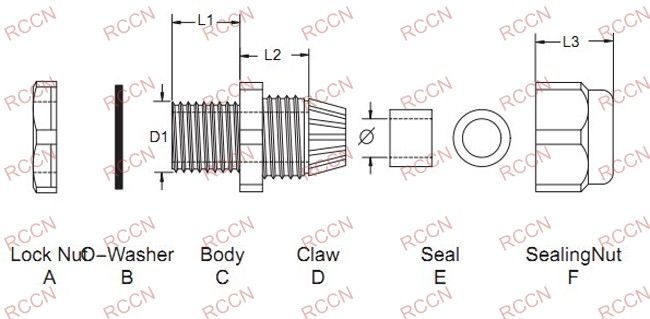

Material:A.C.F are made of stainess steel.D is made of insulated plastic .B.E are made of NBR
Certificates:CE,EX
Protection:IP67。
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
Length added is available, such as :MS20×1.5/L=15
Notes:lock nut is sold separatedly,O-ring is included

Item No

Thread

Cable
Range
Φ

Thread
O.D.
D1

Panel
Mounting
Hole

Thread
Length
L1

JointLength

L2+L3

Spanner
size
A&F

Std.Pkg
Pcs


MS12*1.5 M12*1.5 3-6 12 12-12.3 6 19 16 100PCS
MS14*1.5 M14*1.5 3-6 14 14-14.3 6 19 16
MS16*1.5 M16*1.5 4-8 16 16-16.3 7 20 18
MS18*1.5 M18*1.5 6-10 18 18-18.3 8 22 20
MS20*1.5 M20*1.5 8-12 20 20-20.3 8 23 22
MS22*1.5 M22*1.5 10-14 22 22-22.3 9 23 24
MS24*1.5 M24*1.5 10-14 24 24-24.3 10 23 27 50PCS
MS25*1.5 M25*1.5 10-14 25 25-25.4 10 23 28
MS27*2.0 M27*2.0 13-18 27 27-27.4 11 28 30
MS30*2.0 M30*2.0 13-18 30 30-30.4 11 28 32
MS32*1.5 M32*1.5 15-22 32 32-32.4 11 32 36
MS33*2.0 M33*2.0 15-22 33 33-33.4 11 32 36
MS36*2.0 M36*2.0 18-25 36 36-36.4 11 32 42
MS40*1.5 M40*1.5 18-25 40 40-40.4 12 32 45 10PCS
MS42*2.0 M42*2.0 22-28 42 42-42.4 12 36 48
MS48*2.0 M48*2.0 25-32 48 48-48.4 13 38 52
MS50*1.5 M50*1.5 26-32 50 50-50.4 13 38 56 5PCS
MS54*2.0 M54*2.0 32-38 54 54-54.4 14 38 60
MS60*2.0 M60*2.0 37-44 60 60-60.4 14 38 64
MS63*1.5 M63*1.5 37-44 63 63-63.4 14 38 70
