RCCN>>Product>>Cable Gland>> RCCN lengthsBrass Cable Gland

RCCN lengthsBrass Cable Gland

EMC防电磁

Thread:Metric,DIN PG，G/PF,NPT

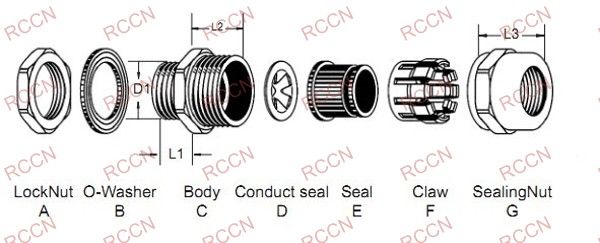

Material:A.C.G are made of copper with nickel.F is made of nylon 66.B is made of copper.E is made of NBR
Certificates:CE,EX
Operate:-50°C to 250°C
Protection:IP68
Features:EMC cable gland looked like a normal gland,
but with its metal intermediate contact disc which can contact the screen of shielded cable,
helps to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagenetic interference.
Conduct seal added can be up to EMC, if added earth conduct seal, the effect will be better.

Item No	CableRange Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg Pcs
MGA12*1.5-6EMC	3-6	12	12-12.3	6	19	16	100PCS
MGA12*1.5-8EMC	4-8	12	12-12.3	6	19	18
MGA16*1.5-8EMC	4-8	16	16-16.3	7	20	18
MGA16*1.5-10EMC	6-10	16	16-16.3	7	20	20
MGA18*1.5-8EMC	4-8	18	18-18.3	8	22	18
MGA18*1.5-10EMC	6-10	18	18-18.3	8	22	20
MGA20*1.5-8EMC	4-8	20	20-20.3	8	22	18
MGA20*1.5-10EMC	6-10	20	20-20.3	8	22	20
MGA22*1.5-14EMC	10-14	22	22-22.3	9	23	24	50PCS
MGA24*1.5-14EMC	10-14	24	24-24.3	10	23	24
MGA25*1.5-14EMC	10-14	25	25-25.4	10	23	24
MGA25*1.5-18EMC	13-18	25	25-25.4	10	23	30
MGA27*2.0-18EMC	13-18	27	27-27.4	11	28	30
MGA30*2.0-18EMC	13-18	30	30-30.4	11	28	30	10PCS
MGA32*1.5-18EMC	13-18	32	32-32.4	11	32	30
MGA32*1.5-25EMC	18-25	32	32-32.4	11	32	42
MGA33*2.0-25EMC	18-25	33	33-33.4	11	32	42
MGA36*2.0-25EMC	18-25	36	36-36.4	11	32	42
MGA40*1.5-25EMC	18-25	40	40-40.4	12	32	42
MGA40*1.5-32EMC	25-32	40	40-40.4	12	32	42
MGA42*2.0-25EMC	18-25	42	42-42.4	12	36	42
MGA48*2.0-32EMC	25-32	48	48-48.4	13	38	52	5PCS
MGA50*1.5-32EMC	25-32	50	50-50.4	13	38	60
MGA50*1.5-40EMC	30-40	50	50-50.4	13	38	60
MGA54*2.0-40EMC	30-40	54	54-54.4	14	38	60
MGA56*2.0-40EMC	30-40	56	56-56.4	14	38	60
MGA60*2.0-54EMC	44-54	60	60-60.4	14	38	77
MGA63*1.5-54EMC	44-54	63	63-63.4	14	38	77

Item No	CableRange Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg Pcs
MGA12*1.5-6LEMC	3-6	12	12-12.3	8	19	16	100PCS
MGA12*1.5-8LEMC	4-8	12	12-12.3	8	19	18
MGA16*1.5-8LEMC	4-8	16	16-16.3	9	20	18
MGA16*1.5-10LEMC	6-10	16	16-16.3	9	20	20
MGA18*1.5-8LEMC	4-8	18	18-18.3	10	22	18
MGA18*1.5-10LEMC	6-10	18	18-18.3	10	22	20
MGA20*1.5-8LEMC	4-8	20	20-20.3	10	22	18
MGA20*1.5-10LEMC	6-10	20	20-20.3	10	22	20
MGA22*1.5-14LEMC	10-14	22	22-22.3	11	23	24	50PCS
MGA24*1.5-14LEMC	10-14	24	24-24.3	12	23	24
MGA25*1.5-14LEMC	10-14	25	25-25.4	12	23	24
MGA25*1.5-18LEMC	13-18	25	25-25.4	12	23	30
MGA27*2.0-18LEMC	13-18	27	27-27.4	12	28	30
MGA30*2.0-18LEMC	13-18	30	30-30.4	13	28	30	10PCS
MGA32*1.5-18LEMC	13-18	32	32-32.4	13	32	30
MGA32*1.5-25LEMC	18-25	32	32-32.4	13	32	42
MGA33*2.0-25LEMC	18-25	33	33-33.4	13	32	42
MGA36*2.0-25LEMC	18-25	36	36-36.4	13	32	42
MGA40*1.5-25LEMC	18-25	40	40-40.4	15	32	42
MGA40*1.5-32LEMC	25-32	40	40-40.4	15	32	42
MGA42*2.0-25LEMC	18-25	42	42-42.4	15	36	42
MGA48*2.0-32LEMC	25-32	48	48-48.4	15	38	52	5PCS
MGA48*2.0-32XLEMC	25-32	48	48-48.4	23	38	32
MGA50*1.5-32LEMC	25-32	50	50-50.4	15	38	60
MGA50*1.5-40LEMC	30-40	50	50-50.4	15	38	60
MGA54*2.0-40LEMC	30-40	54	54-54.4	18	38	60
MGA56*2.0-40LEMC	30-40	56	56-56.4	18	38	60
MGA60*2.0-54LEMC	44-54	60	60-60.4	18	38	77
MGA63*1.5-54LEMC	44-54	63	63-63.4	18	38	77
