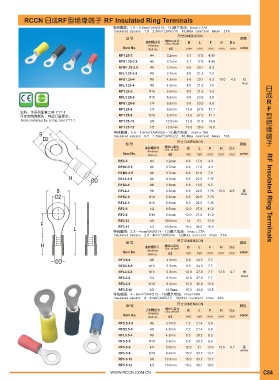

P. 331
2
Insulated squareğ 1.5j2.5mm(AWG16j 14)Max. cunrrentğ ImaxĢ 27A
RF1.25-3 #4 3.2mm 5.7 17.8 4.95
RFS1.25-3.5 #6 3.7mm 5.7 17.8 4.95
RFM1.25-3.5 #6 3.7mm 6.6 20.1 6.3
RFL1.25-3.5 #6 3.7mm 8.0 21.5 7.0
RFS1.25-4 #8 4.3mm 6.6 20.1 6.3 红 10.0 4.3
RFL1.25-4 #8 4.3mm 8.0 21.5 7.0
RF1.25-5 #10 5.3mm 8.0 21.5 7.0
RFL1.25-5 #10 5.3mm 9.8 23.0 8.5
RFS1.25-6 1/4 6.5mm 9.8 23.0 8.5
RF1.25-6 1/4 6.5mm 11.6 27.5 11.1
RF1.25-8 5/16 8.4mm 11.6 27.5 11.1
RF1.25-10 3/8 10.5mm 13.6 31.6 13.9
RF1.25-12 1/2 13.0mm 19.2 36.0 16.5
2
Insulated squareğ 0.5j1.5mm(AWG22j 16)Max. cunrrentğ ImaxĢ 19A
RF2-3 #4 3.2mm 6.6 17.8 4.3
RFS2-3.5 #6 3.7mm 6.6 17.8 4.3
RFM2-3.5 #6 3.7mm 6.6 21.0 7.0
RFL2-3.5 #6 3.7mm 8.5 22.5 7.75
RFS2-4 #8 4.3mm 6.6 19.5 6.5
RFL2-4 #8 4.3mm 8.5 22.5 7.75 蓝 10.0 4.9
RFS2-5 #10 5.3mm 8.5 22.5 7.75
RFL2-5 #10 5.3mm 9.5 22.5 7.25
RF2-6 1/4 6.5mm 12.0 27.6 11.0
RF2-8 5/16 8.4mm 12.0 27.6 11.0
RF2-10 3/8 10.5mm 14 31 13.9
RF2-12 1/2 13.0mm 19.2 36.5 16.5
2
Insulated squareğ 2.5j4mm (AWG14j 12)Max. cunrrentğ ImaxĢ 37A
RF3.5-4 #8 4.3mm 8.0 24.5 7.7
RFS3.5-5 #10 5.3mm 8.0 24.5 7.7
RFL3.5-5 #10 5.3mm 12.0 27.9 7.7 黑 13.5 6.7
RF3.5-6 1/4 6.5mm 12.0 27.9 7.7
RF3.5-8 5/16 8.4mm 15.0 32.0 13.5
RF3.5-10 3/8 10.5mm 15.0 32.0 13.5
2
Insulated squareğ 4j6mm (AWG12j 10)Max. cunrrentğ ImaxĢ 48A
RF5.5-3.5 #6 3.7mm 7.2 21.4 5.9
RFS5.5-4 #8 4.3mm 7.2 21.4 5.9
RFL5.5-4 #8 4.3mm 9.5 26.5 8.3
RF5.5-5 #10 5.3mm 9.5 26.5 8.3
RF5.5-6 1/4 6.5mm 12.0 31 13.0 黄 13.5 6.7
RF5.5-8 5/16 8.4mm 15.0 33.7 13.7
RF5.5-10 3/8 10.5mm 15.0 33.7 13.7
RF5.5-12 1/2 13.0mm 19.2 38.1 16.0
Insulated squareğ 1.5j2.5mm(AWG16j 14)Max. cunrrentğ ImaxĢ 27A
RF1.25-3 #4 3.2mm 5.7 17.8 4.95
RFS1.25-3.5 #6 3.7mm 5.7 17.8 4.95
RFM1.25-3.5 #6 3.7mm 6.6 20.1 6.3
RFL1.25-3.5 #6 3.7mm 8.0 21.5 7.0
RFS1.25-4 #8 4.3mm 6.6 20.1 6.3 红 10.0 4.3
RFL1.25-4 #8 4.3mm 8.0 21.5 7.0
RF1.25-5 #10 5.3mm 8.0 21.5 7.0
RFL1.25-5 #10 5.3mm 9.8 23.0 8.5
RFS1.25-6 1/4 6.5mm 9.8 23.0 8.5
RF1.25-6 1/4 6.5mm 11.6 27.5 11.1
RF1.25-8 5/16 8.4mm 11.6 27.5 11.1
RF1.25-10 3/8 10.5mm 13.6 31.6 13.9
RF1.25-12 1/2 13.0mm 19.2 36.0 16.5
2
Insulated squareğ 0.5j1.5mm(AWG22j 16)Max. cunrrentğ ImaxĢ 19A
RF2-3 #4 3.2mm 6.6 17.8 4.3
RFS2-3.5 #6 3.7mm 6.6 17.8 4.3
RFM2-3.5 #6 3.7mm 6.6 21.0 7.0
RFL2-3.5 #6 3.7mm 8.5 22.5 7.75
RFS2-4 #8 4.3mm 6.6 19.5 6.5
RFL2-4 #8 4.3mm 8.5 22.5 7.75 蓝 10.0 4.9
RFS2-5 #10 5.3mm 8.5 22.5 7.75
RFL2-5 #10 5.3mm 9.5 22.5 7.25
RF2-6 1/4 6.5mm 12.0 27.6 11.0
RF2-8 5/16 8.4mm 12.0 27.6 11.0
RF2-10 3/8 10.5mm 14 31 13.9
RF2-12 1/2 13.0mm 19.2 36.5 16.5
2
Insulated squareğ 2.5j4mm (AWG14j 12)Max. cunrrentğ ImaxĢ 37A
RF3.5-4 #8 4.3mm 8.0 24.5 7.7
RFS3.5-5 #10 5.3mm 8.0 24.5 7.7
RFL3.5-5 #10 5.3mm 12.0 27.9 7.7 黑 13.5 6.7
RF3.5-6 1/4 6.5mm 12.0 27.9 7.7
RF3.5-8 5/16 8.4mm 15.0 32.0 13.5
RF3.5-10 3/8 10.5mm 15.0 32.0 13.5
2
Insulated squareğ 4j6mm (AWG12j 10)Max. cunrrentğ ImaxĢ 48A
RF5.5-3.5 #6 3.7mm 7.2 21.4 5.9
RFS5.5-4 #8 4.3mm 7.2 21.4 5.9
RFL5.5-4 #8 4.3mm 9.5 26.5 8.3
RF5.5-5 #10 5.3mm 9.5 26.5 8.3
RF5.5-6 1/4 6.5mm 12.0 31 13.0 黄 13.5 6.7
RF5.5-8 5/16 8.4mm 15.0 33.7 13.7
RF5.5-10 3/8 10.5mm 15.0 33.7 13.7
RF5.5-12 1/2 13.0mm 19.2 38.1 16.0
