RCCN HVDRFT Narrow Slot Wiring Duct

RCCN HVDRFT Narrow Slot Wiring Duct





RCCN HVDRFT Narrow Slot Wiring Duct

Europe standard Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes,used countries such as U.K,
Germany, and so on
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。Made of rigid PVC
Work Temperature:-40°C to 65°C
UL94 Flammability Rating of V-0  Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Function tips:refre to HVDRF series
RCCN HVDRFT Narrow Slot Wiring Duct

 T: Two protruded lines at the lids top all of RCCN wiring duct can be made in light gray, color dode is1：light gray

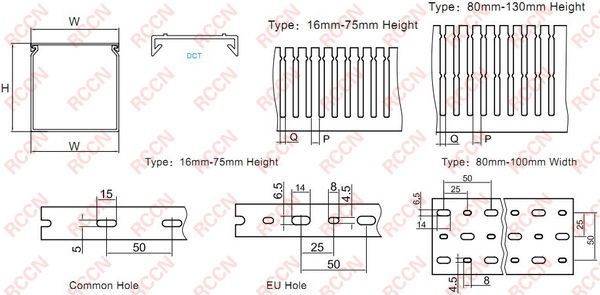

Item No.

W*H

Q

P

pack/M
Gray White Blue Black
HVDR2540FT/9022 HVDR2540FTW HVDR2540FTE HVDR2540FTB 25*40 8.5 11.5 112M
HVDR4040FT/9022 HVDR4040FTW HVDR4040FTE HVDR4040FTB 40*40 8.5 11.5 100M
HVDR6040FT/9022 HVDR6040FTW HVDR6040FTE HVDR6040FTB 60*40 8.5 11.5 68M
HVDR8040FT/9022 HVDR8040FTW HVDR8040FTE HVDR8040FTB 80*40 8.5 11.5 48M
HVDR10040FT/9022 HVDR10040FTW HVDR10040FTE HVDR10040FTB 100*40 8.5 11.5 32M
HVDR2560FT/9022 HVDR2560FTW HVDR2560FTE HVDR2560FTB 25*60 8.5 11.5 100M
HVDR4060FT/9022 HVDR4060FTW HVDR4060FTE HVDR4060FTB 40*60 8.5 11.5 60M
HVDR6060FT/9022 HVDR6060FTW HVDR6060FTE HVDR6060FTB 60*60 8.5 11.5 48M
HVDR8060FT/9022 HVDR8060FTW HVDR8060FTE HVDR8060FTB 80*60 8.5 11.5 36M
HVDR10060FT/9022 HVDR10060FTW HVDR10060FTE HVDR10060FTB 100*60 8.5 11.5 28M
HVDR2580FT/9022 HVDR2580FTW HVDR2580FTE HVDR2580FTB 25*80 10 10 72M
HVDR4080FT/9022 HVDR4080FTW HVDR4080FTE HVDR4080FTB 40*80 10 10 48M
HVDR6080FT/9022 HVDR6080FTW HVDR6080FTE HVDR6080FTB 60*80 10 10 32M
HVDR8080FT/9022 HVDR8080FTW HVDR8080FTE HVDR8080FTB 80*80 10 10 24M
HVDR10080FT/9022 HVDR10080FTW HVDR10080FTE HVDR10080FTB 100*80 10 10 24M
HVDR25100FT/9022 HVDR25100FTW HVDR25100FTE HVDR25100FTB 25*100 10 10 60M
HVDR40100FT/9022 HVDR40100FTW HVDR40100FTE HVDR40100FTB 40*100 10 10 40M
HVDR60100FT/9022 HVDR60100FTW HVDR60100FTE HVDR60100FTB 60*100 10 10 32M
HVDR80100FT/9022 HVDR80100FTW HVDR80100FTE HVDR80100FTB 80*100 10 10 24M
HVDR100100FT/9022 HVDR100100FTW HVDR100100FTE HVDR100100FTB 100*100 10 10 24M



RCCN HVDRFT Narrow Slot Wiring Duct



RCCN HVDRFT Narrow Slot Wiring Duct  RCCN HVDRFT Narrow Slot Wiring Duct





RCCN  Din Rails







RCCN HVDRFT Narrow Slot Wiring Duct        RCCN HVDRFT Narrow Slot Wiring Duct


RCCN HVDRFT Narrow Slot Wiring Duct

RCCN HVDRFT Narrow Slot Wiring Duct



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M
