RCCN>>Wiring Duct Products >> RCCN VDRU Wide Slot Wiring Duct

RCCN VDRU Wide Slot Wiring Duct

American standard Narrow slot/finger design provides more slots
to closer fit thespacing of high-density terminal blocks and other
hardware used countries such as USA,
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colorsWork
Temperature:-40°C to 65°C

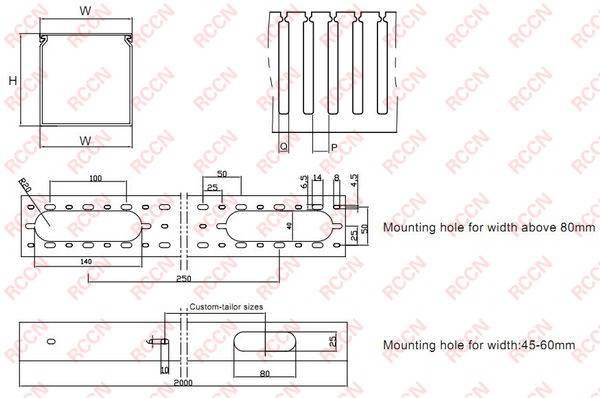

Mounting hole can be processed according to the drawing:VDR8080FU,U is for bigger mouting hole.

Item No.				W*H	Q	P	Wire capability/2.0sp	pack/M
Gray	White	Blue	Black	W*H	Q	P	Wire capability/2.0sp	pack/M
VDR4545U	VDR4545UW	VDR4545UE	VDR4545UB	45*45	8	12	60~70	72M
VDR5050U	VDR5050UW	VDR5050UE	VDR5050UB	50*50	8	12	80~90	50M
VDR4580U	VDR4580UW	VDR4580UE	VDR4580UB	45*80	8	12	140~160	40M
VDR5080U	VDR5080UW	VDR5080UE	VDR5080UB	50*80	8	12	160~180	40M
VDR6080U	VDR6080UW	VDR6080UE	VDR6080UB	60*80	8	12	180~210	32M
VDR8080U	VDR8080UW	VDR8080UE	VDR8080UB	80*80	8	12	240~290	24M
VDR10080U	VDR10080UW	VDR10080UE	VDR10080UB	100*80	8	12	260~350	24M
VDR12080U	VDR12080UW	VDR12080UE	VDR12080UB	120*80	8	12	280~380	16M
VDR14080U	VDR14080UW	VDR14080UE	VDR14080UB	140*80	8	12	350~450	16M
VDR50100U	VDR50100UW	VDR50100UE	VDR50100UB	50*100	8	12	220~250	40M
VDR60100U	VDR60100UW	VDR60100UE	VDR60100UB	60*100	8	12	240~290	32M
VDR80100U	VDR80100UW	VDR80100UE	VDR80100UB	80*100	8	12	260~350	24M
VDR100100U	VDR100100UW	VDR100100UE	VDR100100UB	100*100	8	12	300~400	24M
VDR120100U	VDR120100UW	VDR120100UE	VDR120100UB	120*100	8	12	350~450	16M
VDR150100U	VDR150100UW	VDR150100UE	VDR150100UB	150*100	8	12	400~650	16M

RCCN Din Rails

Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No. Outer width/Outer height/ Thickness/Length	Material	Length per pcs	Packing/ carton
TS-35/7.5 Series
TS-35/7.5/1.0/1M	Color zinc steel	1M	50M
TS-35/7.5/1.0/1M-ROHS	ROHS silver zinc plated steel	1M	50M
TS-35/7.5/1.0/2M	Color zinc steel	2M	100M
TS-35/7.5/1.0/2M-ROHS	ROHS silver zinc plated steel	2M	100M
TS-35/15 Series
TS-35/15/1.5/1M	Color zinc steel	1M	30M
TS-35/15/1.5/1M-ROHS	ROHS silver zinc plated steel	1M	30M
TS-35/15/1.5/2M	Color zinc steel	2M	60M
TS-35/15/1.5/2M-ROHS	ROHS silver zinc plated steel	2M	60M
LSC-35/7.5/1.1 Series
LSC-35/7.5/1.1/1M	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M	ROHS Aluminum metal	2M	100M
LSC-35/7.5/1.1/1M-No bottom	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M-No bottom	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5/1M-No bottom	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M-No bottom	ROHS Aluminum metal	2M	100M
