日成：产品目录 >>电缆接头金属接头 >>日成MBGW型金属螺纹接头

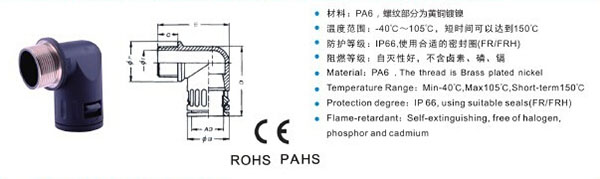

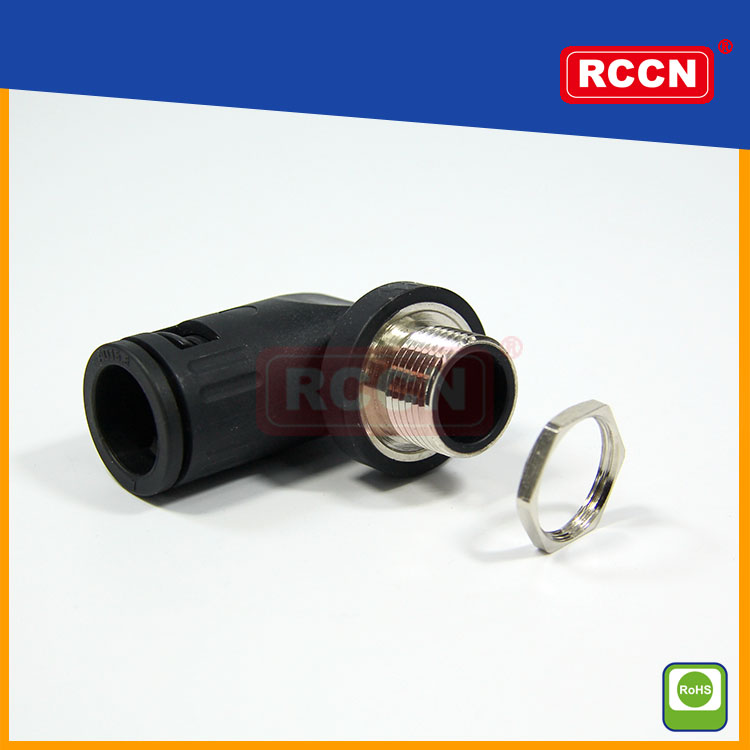

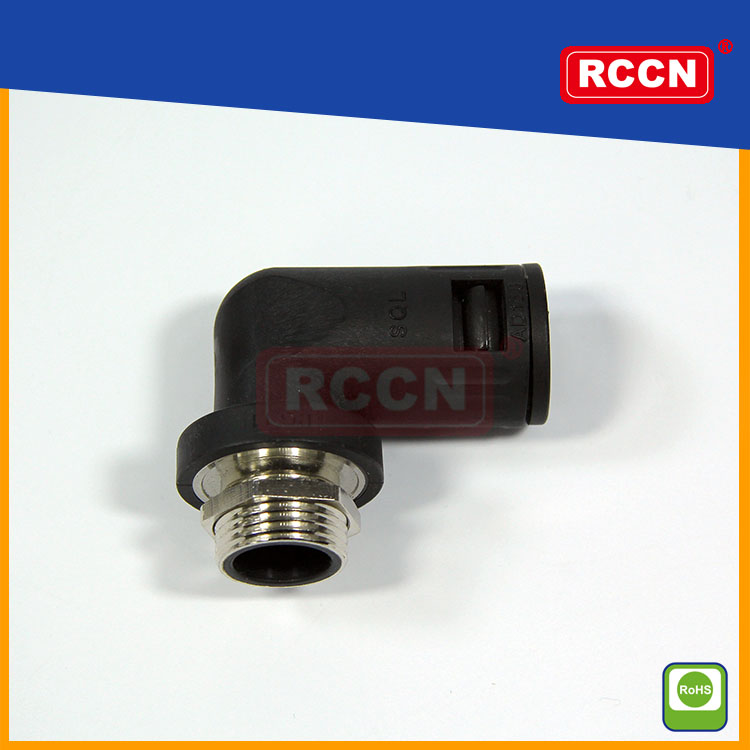

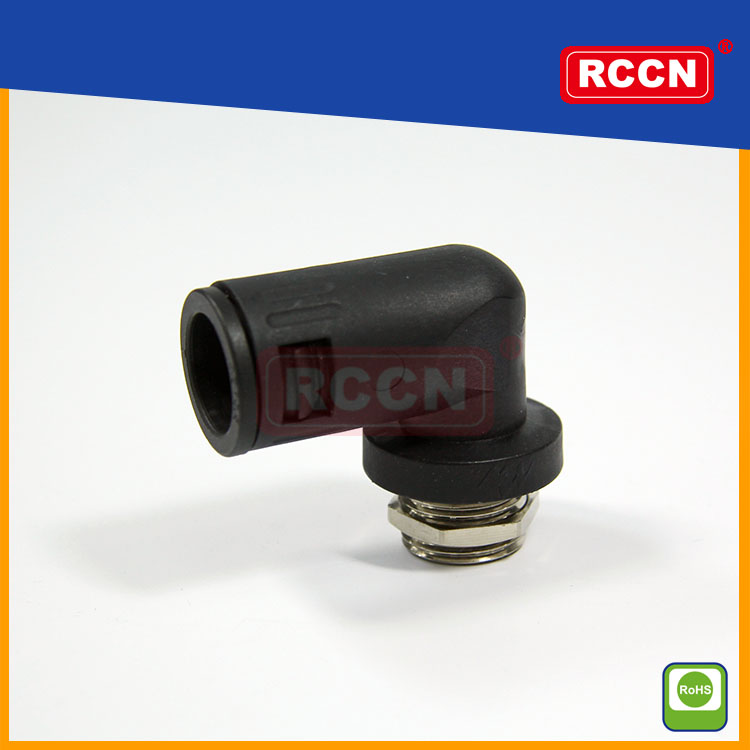

日成MBGW型金属螺纹接头

型号 Item No .		螺纹规格 Thread	螺纹外径 Thread O.D. D1	螺纹长度 Thread Length GL	内孔径 Smallest inner 1Φ	外径 Largest outer BΦ	长度 Total length H
黑色 Black Ral9005	深灰色Gray Ral7037	螺纹规格 Thread	螺纹外径 Thread O.D. D1	螺纹长度 Thread Length GL	内孔径 Smallest inner 1Φ	外径 Largest outer BΦ	长度 Total length H
公制螺纹 MBGW-M
MBGW-M12B(BG07)	BGW-M12G(BG07)	M12×1.5	12.0	10.0	8.5	17.0	33.5
MBGW-M16B (BG10)	BGW-M16G(BG10)	M16×1.5	16.0	10.0	12.0	20.0	36.0
MBGW-M16B (BG12)	BGW-M16G(BG12)	M16×1.5	16.0	10.0	12.0	23.0	42.0
MBGW-M18B (BG12)	BGW-M18G(BG12)	M18×1.5	18.0	10.0	15.5	23.0	42.0
MBGW-M20B (BG12)	BGW-M20G(BG12)	M20×1.5	20.0	10.0	15.5	23.0	42.0
MBGW-M20B (BG15)	BGW-M20G(BG15)	M20×1.5	20.0	11.0	13.5	26.5	46.0
MBGW-M20B (BG17)	BGW-M20G(BG17)	M20×1.5	20.0	12.0	14.8	29.5	50.0
MBGW-M22B(BG17)	BGW-M22G(BG17)	M22*1.5	22.0	12.0	18.0	29.5	59.0
MBGW-M24B (BG17)	BGW-M24G(BG17)	M24×1.5	24.0	13.0	18.0	29.5	50.0
MBGW-M25B (BG17)	BGW-M25G(BG17)	M25×1.5	25.0	13.0	14.8	29.0	46.0
MBGW-M25B (BG23)	BGW-M25G(BG23)	M25×1.5	25.0	13.0	18.0	29.0	50.0
MBGW-M32B (BG29)	BGW-M32G(BG29)	M32×1.5	32.0	15.0	24.0	44.0	67.5
MBGW-M40B (BG36)	BGW-M40G(BG36)	M40×1.5	40.0	15.0	32.0	52.0	83.0
MBGW-M50B (BG48)	BGW-M50G(BG48)	M50×1.5	50.0	16.0	39.0	64.0	88.0
MBGW-M63B (BG48)	BGW-M63G(BG48)	M63×1.5	63.0	16.0	53.0	64.0	88.0
德制螺纹 MBGW-P
MBGW-PG7B(BG07)	BGW-PG7G	PG7	12.5	10.0	8.5	17.0	33.5
MBGW-PG9B (BG10)	BGW-PG9G	PG9	15.2	10.0	12.0	20.0	36.0
MBGW-PG11B (BG12)	BGW-PG11G	PG11	18.6	10.0	12.0	23.0	42.0
MBGW-PG13.5B (BG15)	BGW-PG13.5G	PG13.5	20.4	11.0	13.5	26.5	46.0
MBGW-PG13.5B(BG17)	BGW-PG13.5G	PG13.5	20.4	12.0	18.0	29.5	50.0
MBGW-PG16B (BG17)	BGW-PG16G	PG16	22.5	12.0	18.0	29.5	50.0
MBGW-PG21B (BG23)	BGW-PG21G	PG21	28.3	12.0	24.0	37.0	57.0
MBGW-PG29B (BG29)	BGW-PG29G	PG29	37.0	12.0	32.0	44.0	67.5
MBGW-PG36B (BG36)	BGW-PG36G	PG36	47.0	12.0	36.0	52.0	83.0
MBGW-PG42B(BG48)	BGW-PG42G	PG42	54.0	14.0	48.0	64.0	88.0
MBGW-PG48B (BG48)	BGW-PG48G	PG48	59.3	14.0	48.0	64.0	88.0
公制螺纹 MBGW1-M/防水型
MBGW1-M12B(BG07)	BGW1-M12G(BG07)	M12×1.5	12.0	10.0	8.5	17.0	33.5
MBGW1-M16B (BG10)	BGW1-M16G(BG10)	M16×1.5	16.0	10.0	12.0	20.0	36.0
MBGW1-M16B (BG12)	BGW1-M16G(BG12)	M16×1.5	16.0	10.0	12.0	23.0	42.0
MBGW1-M18B (BG12)	BGW1-M18G(BG12)	M18×1.5	18.0	10.0	15.5	23.0	42.0
MBGW1-M20B (BG12)	BGW1-M20G(BG12)	M20×1.5	20.0	10.0	15.5	23.0	42.0
MBGW1-M20B (BG15)	BGW1-M20G(BG15)	M20×1.5	20.0	11.0	13.5	26.5	46.0
MBGW1-M20B (BG17)	BGW1-M20G(BG17)	M20×1.5	20.0	12.0	14.8	29.5	50.0
MBGW1-M22B(BG17)	BGW1-M22G(BG17)	M22*1.5	22.0	12.0	18.0	29.5	59.0
MBGW1-M24B (BG17)	BGW1-M24G(BG17)	M24×1.5	24.0	13.0	18.0	29.5	50.0
MBGW1-M25B (BG17)	BGW1-M25G(BG17)	M25×1.5	25.0	13.0	14.8	29.0	46.0
MBGW1-M25B (BG23)	BGW1-M25G(BG23)	M25×1.5	25.0	13.0	18.0	29.0	50.0
MBGW1-M32B (BG29)	BGW1-M32G(BG29)	M32×1.5	32.0	15.0	24.0	44.0	67.5
MBGW1-M40B (BG36)	BGW1-M40G(BG36)	M40×1.5	40.0	15.0	32.0	52.0	83.0
MBGW1-M50B (BG48)	BGW1-M50G(BG48)	M50×1.5	50.0	16.0	39.0	64.0	88.0
MBGW1-M63B (BG48)	BGW1-M63G(BG48)	M63×1.5	63.0	16.0	53.0	64.0	88.0
德制螺纹 MBGW1-P/防水型
MBGW1-PG7B(BG07)	BGW1-PG7G	PG7	12.5	10.0	8.5	17.0	33.5
MBGW1-PG9B (BG10)	BGW1-PG9G	PG9	15.2	10.0	12.0	20.0	36.0
MBGW1-PG11B (BG12)	BGW1-PG11G	PG11	18.6	10.0	12.0	23.0	42.0
MBGW1-PG13.5B (BG15)	BGW1-PG13.5G	PG13.5	20.4	11.0	13.5	26.5	46.0
MBGW1-PG13.5B(BG17)	BGW1-PG13.5G	PG13.5	20.4	12.0	18.0	29.5	50.0
MBGW1-PG16B (BG17)	BGW1-PG16G	PG16	22.5	12.0	18.0	29.5	50.0
MBGW1-PG21B (BG23)	BGW1-PG21G	PG21	28.3	12.0	24.0	37.0	57.0
MBGW1-PG29B (BG29)	BGW1-PG29G	PG29	37.0	12.0	32.0	44.0	67.5
MBGW1-PG36B (BG36)	BGW1-PG36G	PG36	47.0	12.0	36.0	52.0	83.0
MBGW1-PG42B(BG48)	BGW1-PG42G	PG42	54.0	14.0	48.0	64.0	88.0
MBGW1-PG48B (BG48)	BGW1-PG48G	PG48	59.3	14.0	48.0	64.0	88.0
