日成：产品目录 >>电缆接头金属接头 >>日成PGA-EMC型防电磁金属电缆防水接头

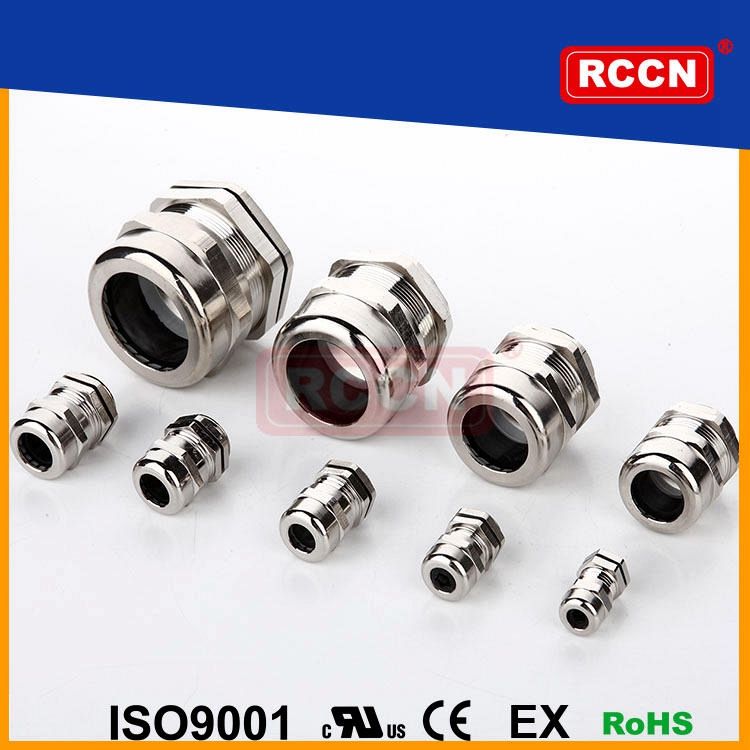

日成PGA-EMC型防电磁金属电缆防水接头

EMC防电磁

螺牙规格:德制螺牙(DIN PG)，管制螺牙(G/PF)，美制螺牙(NPT)。
产品材质:A.C.G部位均采用黄铜镀镍制成.F采用尼龙66.B采用加厚型紫铜.E采用采用耐老化硅橡胶材质。
产品认证:欧洲CE,防爆EX认证
工作温度:静态-50°C至150°C
防护等级:在规定的卡口范围内,并使用O形密封圈旋紧迫紧头,达到IP68。
产品特性:夹紧爪与夹紧圈分体成型之设计双重橡胶防尘,水功能,配合迫紧头装配省时便利,夹紧电缆范围大,固定电缆抗拉力超强,气密性更完美,可沉于水下持续防水、水上防尘、户外耐老化UV过1000小时，耐化学物质与溶剂。
加导电圈设计可防电磁干扰,如配接地片防电磁效果更优。
目录页码:A35 A37

型号 Item No	螺牙规格 Thread	适应电缆 Cable Range Φ	螺纹外径 Thread O.D. D1	机板口径 Panel Mounting Hole	螺纹长度 Thread Length L1	板手 Spanner size A&F	包装Std.Pkg Pcs
PG德制螺纹							100PCS
PG7A-6EMC	PG-7	3-6	12.5	12.5-12.8	8	16
PG7A-8EMC	PG-7	4-8	12.5	12.5-12.8	8	16
PG9A-6EMC	PG-9	3-6	15.2	15.2-15.8	9	16
PG9A-8EMC	PG-9	4-8	15.2	15.2-15.8	9	16
PG11A-8EMC	PG-11	4-8	18.6	18.6-18.9	10	20
PG11A-10EMC	PG-11	6-10	18.6	18.6-18.9	10	20	20PCS
PG13.5A-8EMC	PG-13.5	4-8	20.4	20.4-20.7	10	22	20PCS
PG13.5A-10EMC	PG-13.5	6-10	20.4	20.4-20.7	10	22	10PCS
PG16A-10EMC	PG-16	6-10	22.5	22.5-22.8	11	24
PG16A-14EMC	PG-16	10-14	22.5	22.5-22.8	11	24
G管螺纹							100PCS
PG21A-14EMC	PG-21	10-14	28.3	28.3-28.7	13	30
PG21A-18EMC	PG-21	13-18	28.3	28.3-28.7	13	30
PG29A-18EMC	PG-29	13-18	37.0	37.0-37.4	13	42
PG29A-25EMC	PG-29	18-25	37.0	37.0-37.4	13	42	20PCS
PG36A-25EMC	PG-36	18-25	47.0	47.0-47.4	15	52	20PCS
PG36A-32EMC	PG-36	25-32	47.0	47.0-47.4	15	52	10PCS
PG42A-40EMC	PG-42	30-40	54.0	54.0-54.4	18	60
PG48A-54EMC	PG-42	44-54	59.3	59.3-59.7	18	64
NPT美制螺纹							100PCS
G1/4A-6EMC	G1/4''	3-6	13.2	13.2-13.4	8	16
G3/8A-8EMC	G3/8''	4-8	16.5	16.5-17.1	9	18
G1/2A-10EMC	G1/2''	6-10	21.3	21.0-21.3	11	22
G3/4A-18EMC	G3/4''	13-16	26.6	26.5-26.6	13	30	20PCS
G1A-25EMC	G1''	18-25	33.4	33.2-33.4	13	36	20PCS
G1-1/4A-32EMC	G1 1/4''	25-32	42.1	41.9-42.1	15	48	10PCS
G1-1/2A-40EMC	G1 1/2''	30-40	47.8	47.8-48.0	18	52
G2A-54EMC	G2''	44-54	59.6	59.6-60.1	18	64
NPT3/8A-6EMC	NPT3/8''	4-8	16.5	16.5-17.1	8	18
NPT1/2A-10EMC	NPT1/2''	6-10	21.3	21.0-21.3	10	22
NPT3/4A-18EMC	NPT3/4''	13-18	26.6	26.5-26.6	13	30
NPT1A-25EMC	NPT1''	18-25	33.4	33.2-33.4	13	36
NPT1-1/4A-32EMC	NPT1 1/4''	25-32	42.1	41.9-42.1	15	48
NPT1-1/2A-40EMC	NPT1 1/2''	30-40	47.8	47.8-48.0	18	52
NPT2A-54EMC	NPT2''	44-54	59.6	59.6-60.1	18	64

日成PGA型加长防电磁金属电缆防水接头

型号 Item No	螺牙规格 Thread	适应电缆 Cable Range Φ	螺纹外径 Thread O.D. D1	机板口径 Panel Mounting Hole	螺纹长度 Thread Length L1	板手 Spanner size A&F	包装 Std.Pkg Pcs
PG德制螺纹							100PCS
PG7A-6LEMC	PG-7	3-6	12.5	12.5-12.8	8	16
PG7A-8LEMC	PG-7	4-8	12.5	12.5-12.8	8	16
PG9A-6LEMC	PG-9	3-6	15.2	15.2-15.8	9	16
PG9A-8LEMC	PG-9	4-8	15.2	15.2-15.8	9	16
PG11A-8LEMC	PG-11	4-8	18.6	18.6-18.9	10	20
PG11A-10LEMC	PG-11	6-10	18.6	18.6-18.9	10	20	20PCS
PG13.5A-8LEMC	PG-13.5	4-8	20.4	20.4-20.7	10	22	20PCS
PG13.5A-10LEMC	PG-13.5	6-10	20.4	20.4-20.7	10	22	10PCS
PG16A-10LEMC	PG-16	6-10	22.5	22.5-22.8	11	24
PG16A-14LEMC	PG-16	10-14	22.5	22.5-22.8	11	24
PG21A-14LEMC	PG-21	10-14	28.3	28.3-28.7	13	30	100PCS
PG21A-18LEMC	PG-21	13-18	28.3	28.3-28.7	13	30
PG29A-18LEMC	PG-29	13-18	37.0	37.0-37.4	13	42
PG29A-25LEMC	PG-29	18-25	37.0	37.0-37.4	13	42	20PCS
PG36A-25LEMC	PG-36	18-25	47.0	47.0-47.4	15	52	20PCS
PG36A-32LEMC	PG-36	25-32	47.0	47.0-47.4	15	52	10PCS
PG42A-40LEMC	PG-42	30-40	54.0	54.0-54.4	18	60
PG48A-54LEMC	PG-42	44-54	59.3	59.3-59.7	18	64
G管螺纹							100PCS
G1/4A-6LEMC	G1/4''	3-6	13.2	13.2-13.4	8	16
G3/8A-8LEMC	G3/8''	4-8	16.5	16.5-17.1	9	18
G1/2A-10LEMC	G1/2''	6-10	21.3	21.0-21.3	11	22
G3/4A-18LEMC	G3/4''	13-16	26.6	26.5-26.6	13	30	20PCS
G1A-25LEMC	G1''	18-25	33.4	33.2-33.4	13	36	20PCS
G1-1/4A-32LEMC	G1 1/4''	25-32	42.1	41.9-42.1	15	48	10PCS
G1-1/2A-40LEMC	G1 1/2''	30-40	47.8	47.8-48.0	18	52
G2A-54LEMC	G2''	44-54	59.6	59.6-60.1	18	64
NPT美制螺纹
NPT3/8A-6LEMC	NPT3/8''	4-8	16.5	16.5-17.1	8	18
NPT1/2A-10LEMC	NPT1/2''	6-10	21.3	21.0-21.3	10	22
NPT3/4A-18LEMC	NPT3/4''	13-18	26.6	26.5-26.6	13	30
NPT1A-25LEMC	NPT1''	18-25	33.4	33.2-33.4	13	36
NPT1-1/4A-32LEMC	NPT1 1/4''	25-32	42.1	41.9-42.1	15	48
NPT1-1/2A-40LEMC	NPT1 1/2''	30-40	47.8	47.8-48.0	18	52
NPT2A-54LEMC	NPT2''	44-54	59.6	59.6-60.1	18	64
