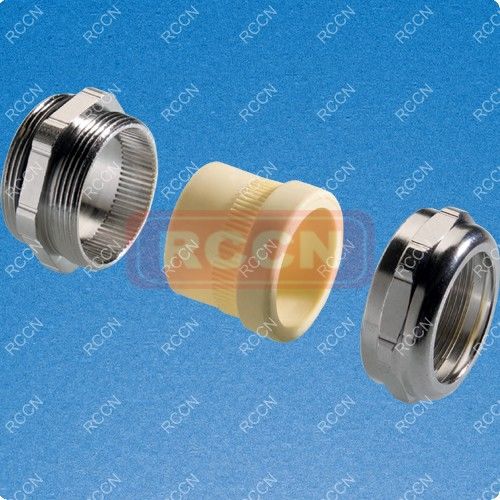

日成DB型加厚金属防水电缆接头

日成DB型加厚金属防水电缆接头


日成DB型加厚金属防水电缆接头


日成DB型加厚金属防水电缆接头

 特厚板型号例:DB-M20*1.5-12/L=15
产品材质:金属:黄铜镀镍制成,橡胶:TPE
螺牙规格:M/PG/NPT/G(PF)  产品认证:CE,EX,ROHS
工作温度:-50°C至150°C  防护等级:IP68
使用方法:将本体固定机板,旋紧迫紧头
即可固定电缆
螺纹标准及开孔数据 参考A24页
目录页码:A40页



型号Item No. 适用电缆
Cable
Range
Φ
螺纹长度
Thread
Length
L1
配套螺母
上限板厚
+Nut Max
platethick
接合长度
Joint
Length
L2+L3
板手
Spanner
SW
A/F
包装
Std.Pkg.
pcs
公制螺纹 M
DB-M12×1.5-6.5 4-6.5 7 ≤3.5 20 14/14 100PCS
DB-M16×1.5-6.5 4-6.5 7 ≤3.5 20 18/18
DB-M16×1.5-8 5-8 7 ≤3.5 20 18/18
DB-M16×1.5-10 6-10 7 ≤3.5 20 18/18
DB-M18×1.5-6.5 4-6.5 8 ≤4.5 20 20/20
DB-M18×1.5-8 5-8 8 ≤4.5 20 20/20
DB-M18×1.5-10 6-10 8 ≤4.5 20 20/20
DB-M18×1.5-11 7-11 8 ≤4.5 20 20/20
DB-M20×1.5-6.5 4-6.5 8 ≤4.5 20 22/22
DB-M20×1.5-8 5-8 8 ≤4.5 20 22/22
DB-M20×1.5-10 6-10 8 ≤4.5 20 22/22
DB-M20×1.5-11 7-11 8 ≤4.5 20 22/22
DB-M20×1.5-13 9-13 8 ≤4.5 20 22/22
DB-M22×1.5-6.5 4-6.5 9 ≤4.5 21 24/24
DB-M22×1.5-8 5-8 9 ≤4.5 21 24/24
DB-M22×1.5-10 6-10 9 ≤4.5 21 24/24
DB-M22×1.5-11 7-11 9 ≤4.5 21 24/24
DB-M22×1.5-13 9-13 9 ≤4.5 21 24/24
DB-M22×1.5-16 11-16 9 ≤4.5 21 24/24
DB-M25×1.5-6.5 4-6.5 9 ≤4.5 21 28-30/24 25PCS
DB-M25×1.5-8 5-8 9 ≤4.5 21 28-30/24
DB-M25×1.5-10 6-10 9 ≤4.5 21 28-30/24
DB-M25×1.5-11 7-11 9 ≤4.5 21 28-30/24
DB-M25×1.5-13 9-13 9 ≤4.5 21 28-30/24
DB-M25×1.5-16 11-16 9 ≤4.5 21 28-30/24
DB-M32×1.5-11 7-11 11 ≤5.5 25 36-30/30
DB-M32×1.5-13 9-13 11 ≤5.5 25 36-30/30
DB-M32×1.5-16 11-16 11 ≤5.5 25 36-30/30
DB-M32×1.5-18 14-18 11 ≤5.5 25 36-30/30
DB-M32×1.5-21 17-21 11 ≤5.5 25 36-30/30
DB-M40×1.5-16 11-16 11 ≤5.5 25 44-40/40 5PCS
DB-M40×1.5-18 14-18 11 ≤5.5 25 44-40/40
DB-M40×1.5-21 17-21 11 ≤5.5 25 44-40/40
DB-M40×1.5-25 20-25 11 ≤5.5 25 44-40/40
DB-M40×1.5-30 25-30 11 ≤5.5 25 44-40/40
DB-M50×1.5-32 27-32 11 ≤5.5 28 54-50/50
DB-M50×1.5-34 29-34 11 ≤5.5 28 54-50/50
DB-M50×1.5-36 32-36 11 ≤5.5 28 54-50/50
DB-M63×1.5-44 40-45 14 ≤9.5 30 68-64/64
德制螺纹 PG
DB-PG7-6.5 4-6.5 7 ≤3.5 20 14/14 100PCS
DB-PG9-6.5 4-6.5 7 ≤3.5 20 18/18
DB-PG9-8 5-8 7 ≤3.5 20 18/18
DB-PG9-10 6-10 7 ≤3.5 20 18/18
DB-PG11-6.5 4-6.5 8 ≤4.5 20 20/20
DB-PG11-8 5-8 8 ≤4.5 20 20/20
DB-PG11-10 6-10 8 ≤4.5 20 20/20
DB-PG11-11 7-11 8 ≤4.5 20 20/20
DB-PG13.5-6.5 4-6.5 8 ≤4.5 20 22/22
DB-PG13.5-8 5-8 8 ≤4.5 20 22/22
DB-PG13.5-10 6-10 8 ≤4.5 20 22/22
DB-PG13.5-11 7-11 8 ≤4.5 20 22/22
DB-PG13.5-13 9-13 8 ≤4.5 20 22/22
DB-PG16-6.5 4-6.5 9 ≤4.5 21 24/24
DB-PG16-8 5-8 9 ≤4.5 21 24/24
DB-PG16-10 6-10 9 ≤4.5 21 24/24
DB-PG16-11 7-11 9 ≤4.5 21 24/24
DB-PG16-13 9-13 9 ≤4.5 21 24/24
DB-PG16-16 11-16 9 ≤4.5 21 24/24
DB-PG21-11 7-11 11 ≤5.5 25 36-30/30 25PCS
DB-PG21-13 9-13 11 ≤5.5 25 36-30/30
DB-PG21-16 11-16 11 ≤5.5 25 36-30/30
DB-PG21-18 14-18 11 ≤5.5 25 36-30/30
DB-PG21-21 17-21 11 ≤5.5 25 36-30/30
DB-PG29-16 11-16 11 ≤5.5 25 44-40/40 5PCS
DB-PG29-18 14-18 11 ≤5.5 25 44-40/40
DB-PG29-21 17-21 11 ≤5.5 25 44-40/40
DB-PG29-25 20-25 11 ≤5.5 25 44-40/40
DB-PG29-30 25-30 11 ≤5.5 25 44-40/40
DB-PG36-32 27-32 11 ≤5.5 28 54-50/50
DB-PG36-32 29-34 11 ≤5.5 28 54-50/50
DB-PG36-36 32-36 11 ≤5.5 28 54-50/50
DB-PG48-44 40-45 14 ≤9.5 30 68-64/64
美制螺纹 NPT
DB-NPT1/4-6.5 4-6.5 7 ≤3.5 20 14/14 100PCS
DB-NPT3/8-6.5 4-6.5 7 ≤3.5 20 18/18
DB-NPT3/8-8 5-8 7 ≤3.5 20 18/18
DB-NPT3/8-10 6-10 7 ≤3.5 20 18/18
DB-NPT1/2-6.5 4-6.5 8 ≤4.5 20 22/22
DB-NPT1/2-8 5-8 8 ≤4.5 20 22/22
DB-NPT1/2-10 6-10 8 ≤4.5 20 22/22
DB-NPT1/2-11 7-11 8 ≤4.5 20 22/22
DB-NPT1/2-13 9-13 8 ≤4.5 20 22/22
DB-NPT3/4-6.5 4-6.5 9 ≤4.5 21 28-30/24 25PCS
DB-NPT3/4-8 5-8 9 ≤4.5 21 28-30/24
DB-NPT3/4-10 6-10 9 ≤4.5 21 28-30/24
DB-NPT3/4-11 7-11 9 ≤4.5 21 28-30/24
DB-NPT3/4-13 9-13 9 ≤4.5 21 28-30/24
DB-NPT3/4-16 11-16 9 ≤4.5 21 28-30/24
DB-NPT1-11 7-11 11 ≤5.5 25 36-30/30
DB-NPT1-13 9-13 11 ≤5.5 25 36-30/30
DB-NPT1-16 11-16 11 ≤5.5 25 36-30/30
DB-NPT1-18 14-18 11 ≤5.5 25 36-30/30
DB-NPT1-21 17-21 11 ≤5.5 25 36-30/30
DB-NPT1-1/4-16 11-16 11 ≤5.5 25 44-40/40 5PCS
DB-NPT1-1/4-18 14-18 11 ≤5.5 25 44-40/40
DB-NPT1-1/4-21 17-21 11 ≤5.5 25 44-40/40
DB-NPT1-1/4-25 20-25 11 ≤5.5 25 44-40/40
DB-NPT1-1/4-30 25-30 11 ≤5.5 25 44-40/40
DB-NPT1-1/2-32 27-32 11 ≤5.5 28 54-50/50
DB-NPT1-1/2-34 29-34 11 ≤5.5 28 54-50/50
DB-NPT1-1/2-36 32-36 11 ≤5.5 28 54-50/50
DB-NPT2-44 40-45 14 ≤9.5 30 68-64/64
英制螺纹 G
DB-G1/4-6.5 4-6.5 7 ≤3.5 20 14/14 100PCS
DB-G3/8-6.5 4-6.5 7 ≤3.5 20 18/18
DB-G3/8-8 5-8 7 ≤3.5 20 18/18
DB-G3/8-10 6-10 7 ≤3.5 20 18/18
DB-G1/2-6.5 4-6.5 8 ≤4.5 20 22/22
DB-G1/2-8 5-8 8 ≤4.5 20 22/22
DB-NG1/2-10 6-10 8 ≤4.5 20 22/22
DB-G1/2-11 7-11 8 ≤4.5 20 22/22
DB-G1/2-13 9-13 8 ≤4.5 20 22/22
DB-G3/4-6.5 4-6.5 9 ≤4.5 21 28-30/24 25PCS
DB-G3/4-8 5-8 9 ≤4.5 21 28-30/24
DB-G3/4-10 6-10 9 ≤4.5 21 28-30/24
DB-G3/4-11 7-11 9 ≤4.5 21 28-30/24
DB-G3/4-13 9-13 9 ≤4.5 21 28-30/24
DB-G3/4-16 11-16 9 ≤4.5 21 28-30/24
DB-G1-11 7-11 11 ≤5.5 25 36-30/30
DB-G1-13 9-13 11 ≤5.5 25 36-30/30
DB-G1-16 11-16 11 ≤5.5 25 36-30/30
DB-G1-18 14-18 11 ≤5.5 25 36-30/30
DB-G1-21 17-21 11 ≤5.5 25 36-30/30
DB-G1-1/4-16 11-16 11 ≤5.5 25 44-40/40 5PCS
DB-G1-1/4-18 14-18 11 ≤5.5 25 44-40/40
DB-G1-1/4-21 17-21 11 ≤5.5 25 44-40/40
DB-G1-1/4-25 20-25 11 ≤5.5 25 44-40/40
DB-G1-1/4-30 25-30 11 ≤5.5 25 44-40/40
DB-G1-1/2-32 27-32 11 ≤5.5 28 54-50/50
DB-G1-1/2-34 29-34 11 ≤5.5 28 54-50/50
DB-G1-1/2-36 32-36 11 ≤5.5 28 54-50/50
DB-G2-44 40-45 14 ≤9.5 30 68-64/64
